If You are among the Candidates that will be writing Chemistry in the upcoming KCSE exams this year, review the past paper 1, it will go a long way in helping You. When You download the PDF of the 2016 KCSE Chemistry Past Paper 1, paper 2, and paper 3 as the case may be, start practicing It consistently, using the marking scheme when necessary, You will see good results.

The past Papers will prepare You for the upcoming 2020 KCSE exams, and We believe that past questions are really worth It in revising for KCSE examinations. There are no new questions, it’s just a repetition of already-set questions but in a different tricky form.

KCSE Chemistry Past Paper 1 2016

If You decide to buy the KCSE past revision Papers from us, the content of What You will receive for every order are as follows

  • Past Question
  • Marking Schemes
  • Predicted Questions

We will send the Past Papers PDF to your email for You to download and study. But If You download the free version on this page, certainly the marking schemes may be limited and obviously the KCSE prediction questions are not attached.

If at any point You experience difficulty in either downloading the paper 1, paper 2 or paper 3, feel free to drop a comment below and We’ll respond accordingly.

Kenya Certificate of Secondary Education Chemistry (KCSE) Past Paper 1 2016

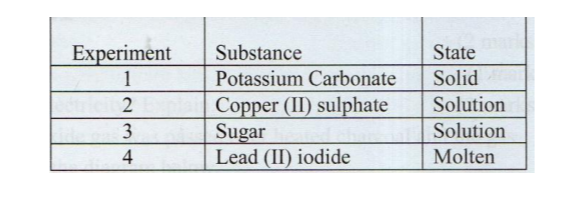

1. A student investigated the effect of an electric current by passing it through some substances. The student used inert electrodes and connected a bulb to the circuit. The table below shows the substances used and their states.

KCSE Chemistry Past Paper 1 2016 substances and their states

Experiment Substance State 1 Potassium carbonate Solid 2 Copper (H) sulphate Solution 3 Sugar Solution 4 Lead (II) iodide Molten

(a) In which experiment did the bulb not light? (1 mark)

(b) Explain your answer in (a) above. (2 marks)

2. An alkanol has the following composition by mass: hydrogen 13.5%, oxygen 21.6% and carbon 64.9%.

(a) Determine the empirical formula of the alkanol. (C = 12.0, H = 1.0, 0 = 16) (2 marks)

(b) Given that the empirical formula and the molecular formula of the alkanol are the same, draw the structure of the alkanol. (1 mark)

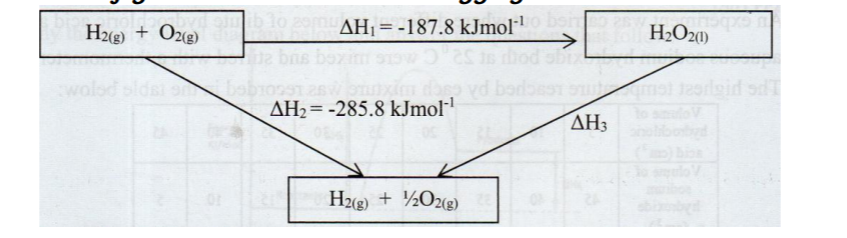

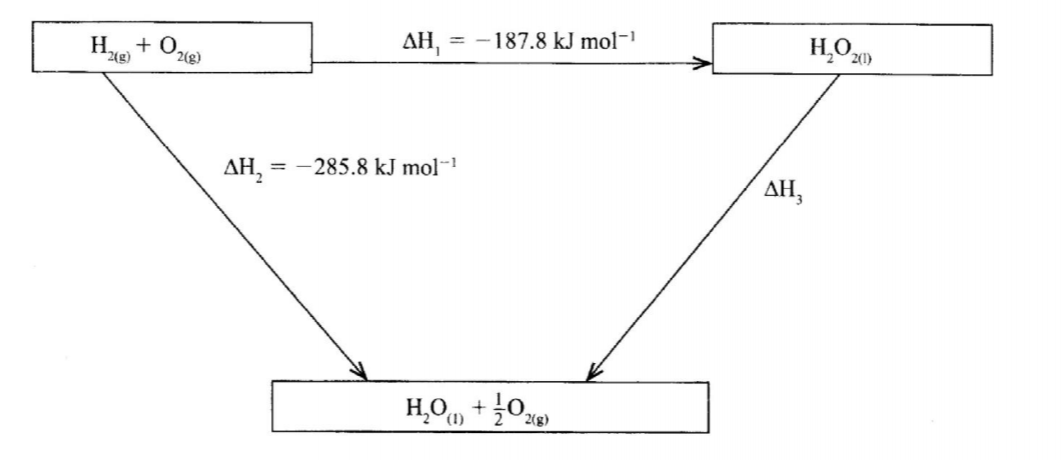

3. The figure below shows an energy cycle.

Chemistry Energy Circle

(a) Give the name of the enthalpy change AI-11. (I mark)

(b) Determine the value of H3. (2 marks)

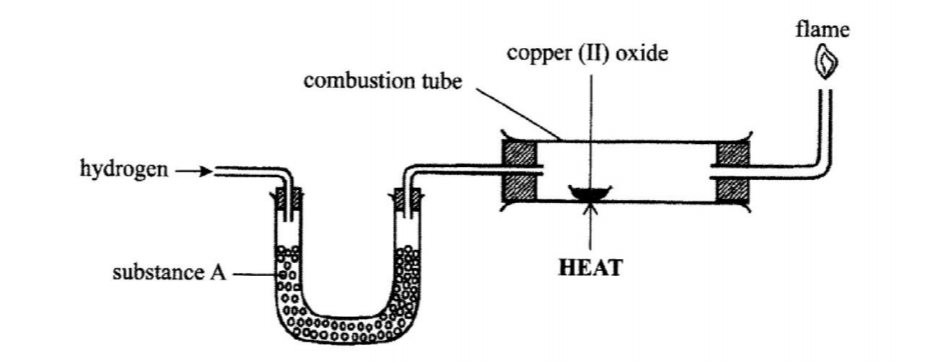

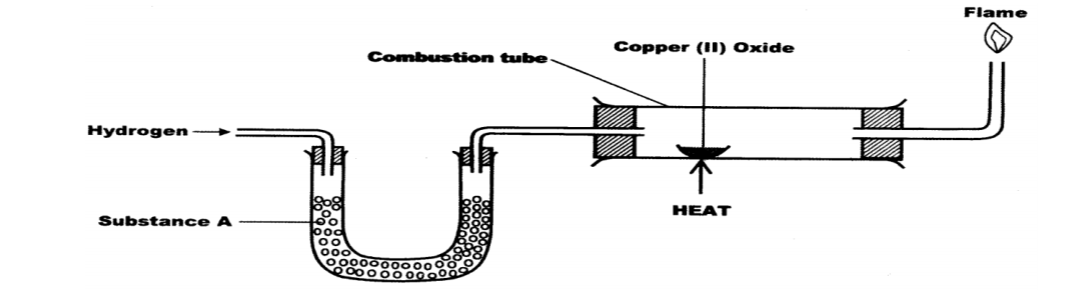

4. The set up below was used to investigate the reaction between dry hydrogen gas and copper (11) oxide.

reaction between dry hydrogen gas and copper (11) oxide

(a) Name substance A. (1 mark)

(b) State the observation made in the combustion tube. (1 mark)

(c) Explain the observation made in (b) above. (1 mark)

5. Starting with sodium metal, describe how a sample of crystals of sodium hydrogen carbonate may be prepared. (3 marks)

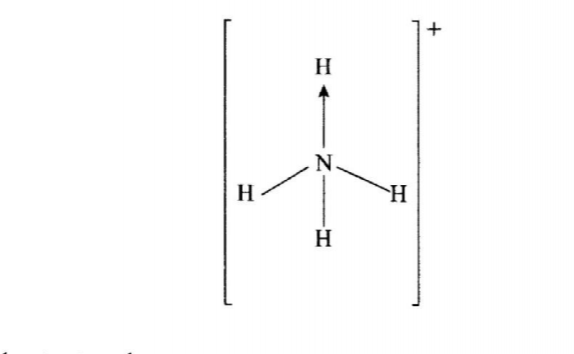

6. Ammonium Ion has the following structure.

KCSE Ammonium Ion Structure 2016

Label on the structure the:

(a) Covalent bond (1 mark)

(b) Coordinate (dative) bond (1 mark)

7. When 8.53 g of sodium nitrate was heated in an open test tube, the mass of oxygen gas produced was 0.83 g. Given the equation of the reaction as:

2NaNO3(s) -> 2NaNO2(s) + 02(g)

Calculate the percentage of sodium nitrate that was converted to sodium nitrite (Na = 23.0, N = 14.0, 0 = 16.0) (3 marks)

8. Aluminium is both malleable and ductile; (a) What is meant by?

(i) Malleable (1/2 mark)

(ii) Ductile(1/2 mark)

(i) Malleability (1/2). mark)

(ii) Ductility (1/2 mark)

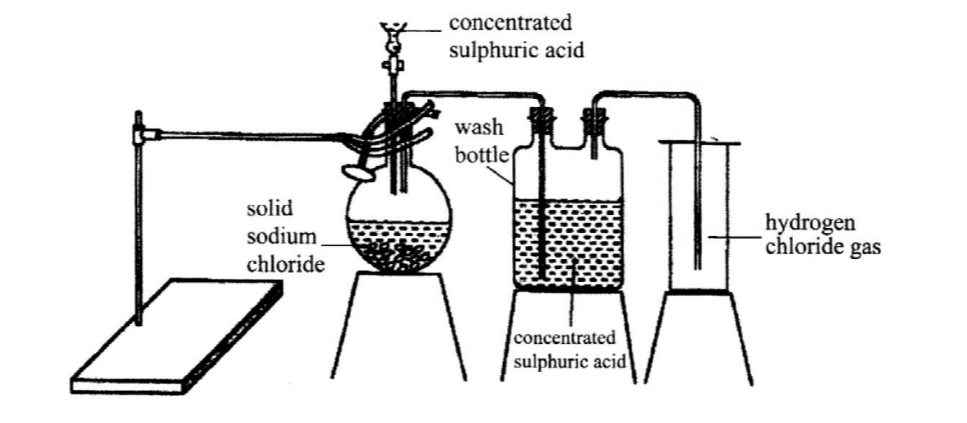

9. The diagram below represents the set up that was used to prepare and collect hydrogen chloride gas in the laboratory.

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 1

(a) State the purpose of concentrated sulphuric acid in the wash bottle. (1 mark)

(b) Write an equation for the reaction between dry hydrogen chloride gas and heated iron. ( I mark)

10. Iron (111) oxide was found to be contaminated with copper (II) sulphate. Describe how a pure sample of iron (111) oxide can be obtained. (3 marks)

11. Complete the nuclear equation below. (a)

Nuclear reaction between I and Xe

(b) The half life of

Nuclear half-life

is 8 days. Determine the mass of

Nuclear mass

remaining if 50 grammes 50g decayed for 40 days. (2 marks) (c) Give one harmful effect of radio isotope (1 marks)

12. During an experiment, chlorine gas was bubbled into a solution of potassium iodide. (a) State the observations made. ( 1 mark)

(b) Using an ionic equation, explain why the reaction is redox. (2 marks)

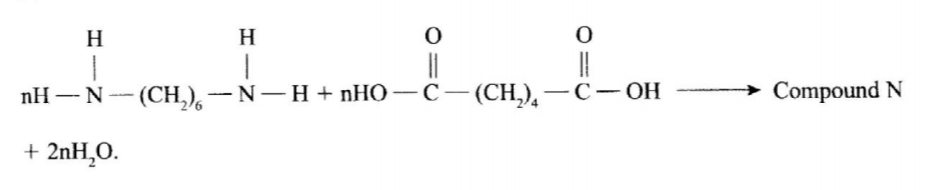

13. (a) Draw the structure of compound N formed in the following reaction. (1 mark)

Chemical Reaction

(b) Give one use of compound N. (1 mark)

14. When fuel bums in the internal combustion engine at high temperature, one of the products formed is nitrogen (11) oxide.

(a) Write the equation for the formation of nitrogen (II) oxide. (1 mark)

(b) Give a reason why nitrogen (II) oxide is not formed at room temperature. (1 mark)

(c) Describe how formation of nitrogen (H) oxide in the internal combustion engine leads to gaseous pollution. (2 marks)

15. Sodium hydroxide can be prepared by the following methods; I and II

1 Sodium metal -> Cold water -> sodium hydroxide + hydrogen

11 Concentrated -> Process A ->sodium hydroxide + chlorine + hydrogen Sodium chloride

(a) Name one precaution that needs to be taken in method I. (1 mark)

READ ALSO:  Review KCSE Mathematics Past Papers 2015 - Free Guide

(b) Give the name of process A. (I mark)

(c) Give one use of sodium hydroxide. (I mark)

16. The atomic number of sulphur is 16. Write the electron arrangement of sulphur in the following? (2 marks)

(a) H2(s)

(b) S032-

17. A compound whose general formula is M(OH)., reacts as shown by the equation.

M(OH)3 + OHaq -> M(OH)3

M(OH)4 (aq)+3H(aq) ->+M3+(aq)

(a) What name is given to compounds which behave like M(01-1)3 in the two reactions. (1 mark)

(b) Name two elements whose hydroxides behave like that of M. (2 marks)

18. A water trough, aqueous sodium hydroxide, burning candle, watch glass and a graduated gas jar were used in an experimental set up to determine the percentage of active part of air.

Draw a labelled diagram of the set up at the end of the experiment. (3 marks)

19. In an experiment on rates of reaction, potassium carbonate was reacted with dilute sulphuric (VI) acid.

(a) What would be the effect of an increase in the concentration of the acid on the rate of the reaction? (1 mark)

(b) Explain why the rate of reaction is found to increase with temperature. (2 marks)

20. 60cm3 of oxygen gas diffused through a porous partition in 50 seconds. How long would it take 60cm3 sulphur (IV) oxide gas to diffuse through the same partition under the same condition? (S = 32.0, 0 = 16.0) (3 marks)

21. Draw and name the isomers of pentane. (3 marks)

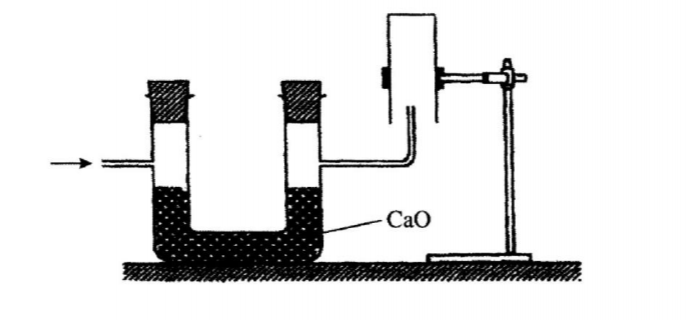

22. The set up below was used to collect a dry sample of a gas.

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 2

Give two reasons why the set up cannot be used to collect carbon (IV) oxide gas. (2 marks)

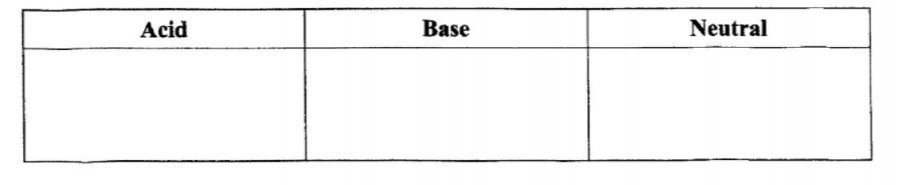

23. Given the following substances: wood ash, lemon juice and sodium chloride.

(a) Name one commercial indicator that can be used to show whether wood ash, lemon juice and sodium chloride are acidic, basic or neutral. (1 mark)

(b) Classify the substances in (a) above as acids bases or neutral. (2 marks)

acids bases or neutral

24. Describe how a solid sample of potassium sulphate can be prepared starting with 200cm3 of 2M potassium hydroxide. (3 marks)

25. Charcoal is a fuel that is commonly used for cooking. When it burns it forms two oxides. (a) Name the two oxides (2 marks)

(b) State one use of the two oxides. (1 mark)

26. Hydrogen sulphide is a highly toxic and flammable gas. It is normally prepared in a fume chamber.

(a) Name two reagents that can be used to prepare hydrogen sulphide in the laboratory. (1 mark)

(b) One of the uses of hydrogen sulphide is to produce sulphur as shown in the following equation.

2H2S(g) + SO2(g) + 2H2Og)) Identify the reducing agent in this reaction and give a reason for your answer. (1 mark) (c) Other than production of sulphuric (VI) acid. State one commercial use of sulphur. (1 mark)

27. Describe an experimental procedure that can be used to extract oil from nut seeds. (2 marks)

28. A mixture contains ammonium chloride, Copper (11) oxide and sodium chloride. Describe how each of the substances can be obtained from the mixture. (3 marks)

29. When a student was stung by a nettle plant, a teacher applied an aqueous solution of ammonia to the affected area of the skin and the student was relieved of pain. Explain. (2 marks)


KCSE Chemistry Past Paper 1 2016 Marking Scheme

Chem Questions and Answers

No. 1. A student investigated the effect of an electric current by passing it through some substances. The student used inert electrodes, and connected a bulb to the circuit. The table below shows the substances used and their states.

Experiment Substance State

KCSE Chemistry Past Paper 1 2016 Marking Scheme for substances and their uses

(a) In which experiment did the bulb not light? (1 mark)

❖ 1 and 3

(b) Explain your answer in (a) above. (2 marks)

❖ In 1 ions K2CO3 are held rigidly within the crystal cannot move (no mobile ions) In 3 sugar exist as molecule hence no mobile ions.

No.2.An alknal has the following composition by mass: hydrogen 13.5%, oxygen 21.6% and carbon 64.9%

(a)Determine the empirical formula of the alcohol(C=12.0; H=1.0′ 0=16.0). (2mks)

❖ [E.F.= C4H9

(b)Given that empirical formula and the molecular formula of the alkanol are the same,draw the structure of the alkonol

alkanol

No. 3. The figure below shows an energy cycle.

Chemistry Energy Circle

Give the name of the enthalpy change AH1. (1 mark)

❖ Enthalpy of formation of hydrogen peroxide or enthalpy of formation

(b)Determine the value of AH3.(2 marks)

❖ AFT1 + AH3 = AH2‘ > AH2 = AH2 – AFli ❖ = – 285.8 – (-187.8) = 187.8 – 285.8 = – 98 kJmo1-1

4.The set up below was used to investigate the reaction between dry hydrogen gas and copper

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 3

(a) Name substance A.(1 mark)

❖ Fused anhydrous calcium chloride

❖ Cao: fused CaCl2

(b) State the observation made in the combustion tube. (1 mark)

❖ Black CuO changes to brown Cu metal

❖ Formation of colourless liquid on the cooler parts of the combustion tube.

(c) Explain the observation stated in (b) above. (1 mark)

❖ Copper (II) oxide is reduced by hydrogen to copper metal while hydrogen is oxidized to water / CuO reduced to Cu /H2 Oxidized to H2O

READ ALSO:  KCSE English Past Paper 1 2016 - Review Exam Papers

No. 5. Starting with sodium metal, describe how a sample of crystals of sodium hydrogen carbonate may be prepared. (3 marks)

❖ React sodium with water to get sodium hydroxide. VBubble into this solul excess carbon (IV) oxide to get sodium hydrogen carbonate

No. 6. Ammonium ion has the following structure

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 4

4. Label on the structure: (a) covalent bond; (b) coordinate (dative) bond. (a) and (b)Dath bond

Covalest bond

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 5

No. 7.When 8.53g of sodium nitrate were heated mass of oxygen gas produced was 0.83 g.

Given reaction as 2NaNO3 (s) -> 2NaNO2 (s) + 0 2 (g) Calculate the percentage of sodium nitrate that nitrite. (Na = 23.0, N = 14.0, 0 = 16.0) (3 marks)

in an open test-tube, the the equation of the was converted to sodium

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 6

No.8. Aluminium is both malleable and ductile.

(a)What is meant by?

(i) Malleable: (1 mark)

❖Can be hammered into sheets.

(ii)Ductile (1 mark)

❖ Can be drawn into wires.

(b)State One use of aluminium based on: (i)malleability (1/2 marks) ❖ Making of sufurias/ motor vehicle parts/ aeroplane parts, window / door flames, cups, plates, packaging materials, pans, making sheets/ roof

(ii)ductility (1/2 marks)

❖ electricity cables/ wires.

No. 9.The diagram below represents the set-up that was used to prepare and collect hydrogen chloride gas in the laboratory.

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 7

State the purpose of concentrated sulphuric (VI) acid in the wash bottle. (1 mark)

❖ It is a drying agent.

Write an equation for the reaction between dry hydrogen chloride gas and heated iron. (1 mark)

❖ Few + 2HCI(g) FeCl2(S) +H2(g)

No. 10 . Iron (III) oxide was found to be contaminated with copper (H) sulphate. Describe how a pure sample of iron (HI) oxide can be obtained. (3 marks)

❖ Add water to dissolve CUSO4, Fe2O3 doesn’t dissolve

❖ Filter out the undissolved Fe2O3

❖ Wash the residue with plenty of water to remove traces of the filtrate.

❖ Dry the residue between the filter papers

No.11.a) Complete the nuclear equation below: (1 mark)

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 8

(b)The half-life of I is 8 days. Determine the mass of 1311 remaining if 50 grammes decayed for 40 days (1 mark)

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 9

(c)Give one harmful effect of radioisotopes.

❖ Instant / cause death

❖ Cause cancer

❖ Cause gene mutation (1 mark)

No. 12. During an experiment, chlorine gas was bubbled into a solution of potassium iodide. (a)State the observations made. (1 mark)

❖ Solution turned from colourless to dark brown

❖ Greenish yellow / pale green colour of C12disappears

❖ Brown solution / black solid is deposited

(b)Using an ionic equation, explain why the reaction is redoes. (2 marks)

❖ C12 (aq) +21 – (aq) — 12 (aq).2CI- (aq)

❖ Explanation; Iodine oxidation state changes from -1 to 0 hence oxidation while Cl2 0.5 changes from 0 to -1 hence reduction / increase is ON and decrease is ON or movement of electrons Cl2 gains e’s where lose

No.13.(a)Draw the structure of compound N formed in the following reaction.

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 10

(b) Give one use of compound N. (l Mark)

❖ Making synthetic fibres such as for: – Ropes

❖ Blouses

❖ Stockings

❖ Undergarments Trousers

No. 14.When fuels burn in the internal combustion engine at high temperature, one of the products formed is nitrogen (II) oxide.

(a) Write the equation for the formation of nitrogen (II) oxide. (1 mark)

❖ N2g) + 02(g) -) 2N0(g)

(b) Give a reason why nitrogen (II) oxide is not formed at room temperature. (1 mark)

❖ Nitrogen atoms in the molecule are joined by strong triple covalent bond that requires a lot of energy to break than provided at room temperature

(c) Describe how formation of nitrogen (H) oxide in the internal combustion engine leads to gaseous pollution. (2 mark)

❖ Nitrogen (II) oxide reacts with oxygen in air to form nitrogen (IV) oxide that dissolves in water vapour causing acid rain.

15.Sodium hydroxide can be prepared by the following methods; I and II. I. Sodium metal cold water Sodium hydroxide + Hydrogen II. Concentrated Process A Sodium hydroxide + Chlorine + Hydrogen Sodium chloride

(a) Name one precaution that needs to be taken in method I.

❖ Small piece of sodium metal (pea size) with a lot of water

❖ Perform the experiment wearing goggles.

(b) Give the name of process A. (1 mark)

❖ Electrolysis (1 mark)

(c) Give one use of sodium hydroxide. (1 mark)

❖ Manufacture of paper (soften), soaps and detergents

❖ Fractional distillation of liquid air

❖ Extraction of aluminium metal

❖ Manufacture of bleaching agents eg Na0Cl paper, textiles, oil refinery

❖ Making herbicides on weed killers

❖ Textile industry to soften

No. 16.The atomic number of sulphur is 16. Write the electron arrangement of sulphur in the following: (2 marks)

(a) H2S

❖2.8.8

(b) SO2-3

❖ 2.8.2

No. 17. A compound whose general formula is M(OH)3 reacts as shown by the equation below.

M (OH) 3(s) + OH4 (aq)

M(OH)3(aq)

M (OH) 3(s) + 3H+ (aq) —10″ M<sup3+< sup=””> (aq) + 3H20 (i)</sup3+<>

(a) What name is given to compounds which behave like M(OH)3 in the two reactions. (1 mark)

❖ Amphoteric

(b) Name two elements whose hydroxides behave like that of M. (2 marks)

❖ Lead, Zinc and Aluminium

No.18.A water trough, aqueous sodium hydroxide, burning candle, watch class and a graduated gas jar were used in an experimental set up to determine the percentage of active part of air. Draw a labeled diagram of the set up at the end of the experiment.

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 11

No. 19.In an experiment on rates of reaction, potassium carbonate was reacted with dilute sulphuric (VI) acid.

READ ALSO:  KCSE Agriculture Past Paper 1 2017: Free Tips

(a) What would be the effect of an increase in the concentration of the acid on the rate of the reaction? (1 mark) ❖ The rate of reaction increases. This is because when the concentration is high: the number of collisions between particles is also high hence reacts faster,

No. 20. 60 cm3 of oxygen gas diffused through a porous partition in 50 seconds. How long would it take 60cm3 of sulphur (IV) oxide gas to diffuse through the same partition under the same conditions? (S = 32.0, 0 = 16.0) (3 marks)

rate of diffusion

No. 21. Draw and name the isomers of pentane.(3 marks)

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 12

No. 22.The set-up below was used to collect a dry sample of a gas

Review KCSE Chemistry Past Paper 1 2016 -  Revision Aids 13

Give two reasons why the set-up cannot be used to collect carbon (IV) oxide gas. (2 marks)

❖ It is denser than air

❖ It will react with calcium oxide since CO2 is acidic and CaO is basic

No. 23. Given the following substances: wood ash, lemon juice and sodium chloride.

(a) Name one commercial indicator that can be used to show whether wood ash, lemon juice and sodium chloride are acidic, basic or neutral. (1 mark)

(b) Classify the substances in 15(a) above as acids, bases or neutral. (2 marks)

No. 24. Describe how a solid sample of potassium sulphate can be prepared starting with 200cm3of 2M potassium hydroxide. (3 marks)

❖ Vol of 2KOH = 100cm3 (or mols = 0.4 = 0.2

❖ Mix the KOH(aq) and H2SO4 acid

❖ Concentrate the mixture/ heat the mixture

❖ Crystalise the solution ( or heating the solution to dryness)

❖ Dry crystals

No. 25. Charcoal is a fuel that is commonly used for cooking. When it burns it forms two oxides. (a) Name the two oxides. (2 marks)

❖ Carbon (IV) oxide /CO2/ carbon dioxide

❖ Carbon (II) oxide/ CO/ carbon monoxide

(b) State one use of the two oxides. (1 mark)

• Fire extinguisher/ photosynthesis

❖Refrigeration

❖ Solvay process

❖ Fizzy drinks

❖ Food preservation

❖ Extraction of metals

❖ Manufacture of methanol

❖ Manufacture of fuel (water, gas)

NO. 26.Hydrogen sulphide is a highly toxic and flammable gas. It is normally prepared in a fume chamber. (a) Name two reagents that can be used to prepare hydrogen sulphide in the laboratory.(1 mark)

❖ Iron (II) sulphide or conc sulphide / copper sulphide (Accp formula: Fes/ HCl)

❖ Hydrochloric acid or lead (II) sulphide/ HNO3

(b) One of the uses of hydrogen sulphide is to produce sulphur as shown in the following equation:

2H2S(g) + SO2 (g) -> 3S(s) + 2H20(1) Identify the reducing agent in this reaction and give a reason for your answer. (1 mark)

❖ Hydrogen sulphide

❖ The sulphur changes from -2 to zero/ (it reduces SO2 to S) i.e. +4 to 0 / sulphur lost e’s in the H2S to form. sulphur

(c) Other than production of sulphuric (VI) acid, state one commercial use of sulphur.(1 mark)

❖ Vulcanization of rubber

❖ Manufacture of sulphur drugs

❖ Manufacture

of gun powder/ match sticks / explosives/ fungicidesNo. 27. Describe an experimental procedure that can be used to extract oil from nut seeds. (2 marks)

❖ Crush grind using a pestle and mortar, add suitable solvent of propanone ethanol alcohol and stir to dissolve oil. Filter the mixture to obtain a solution of the oil. Leave the solution in the sun for propanode to evaporate leaving the oil.

No. 28 . A mixture contains ammonium chloride, copper (II) oxide and sodium chloride. Describe how each of the substances can be obtained form the mixture. (3 marks)

❖ Heat the mixture to sublime the NH4Cl. Add water to dissolve the NaCl. Copper (II) oxide does not dissolve. Filter and evaporate the filtrate to obtain sodium chloride.

No. 29 . When a student was stung by a nettle plant, a teacher applied an aqueous solution of ammonia to the affected area of the skin and the student was relieved of pain. Explain. (2 marks)

❖ The product from nettle plant is acidic; aqueous ammonia solution being basic neutralize the acidic product

If You want the marking schemes, send Us an email at: smartjohnene@gmail.com indicating your the subject and your name and We will guide You on How to get the documents.

KCSE Chemistry Paper 2

->> Click Here to download Chemistry Paper 2 PDF

KCSE Chemistry Paper 3

->> The Chemistry Paper 3 was not given

After a successful purchase of the past Papers It is time for revision. Put in your best and get the best out of your KCSE Exams.

To purchase the Past Papers, Go to the Matric Exam Papers Master Page

Navigation Panel:

We guess this information on KCSE Chemistry Past Paper 1 was really helpful, tell Us What You think in the comment session below. We wish to hear your views, do not forget to use the share buttons below to share with others.



LEAVE A REPLY

Please enter your comment!
Please enter your name here

This site uses Akismet to reduce spam. Learn how your comment data is processed.
